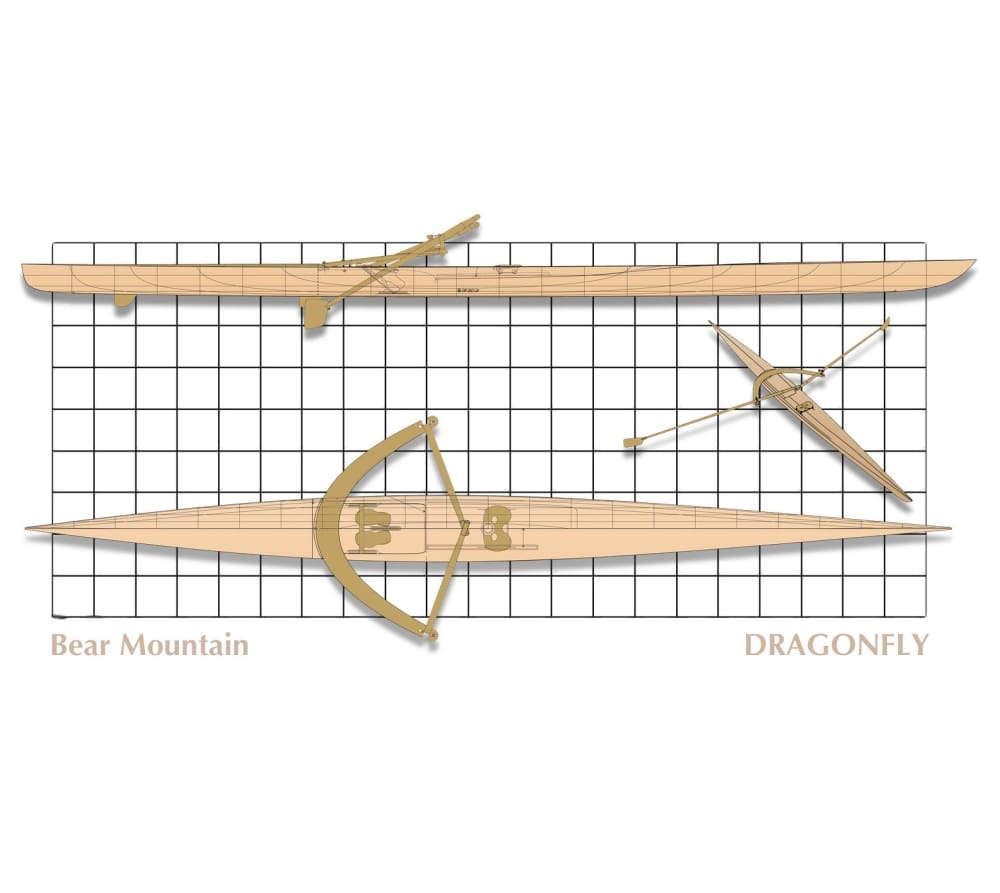

Dragonfly

• Length: 22' 4"
• Maximum beam 19.25"
• Beam waterline 17.0"
• Bow height 7.5"
• Draft 3"
• Displacement (3WL) 210 lbs
• Displacement (3.5"WL) 260 lbs
• Wetted surface 21.8 sq.ft.
• Metacentre -6/2"
• Weight to immerse 99 lb/in
• Prismatic coefficient 0.5553

The Dragonfly Rowing Shell was developed in response to a request from a Canadian Canoes customer. It fits that line between hard-to-master racing shell and much-too-sedate recreational shell. It is fun to row, but a challenge to build. Construction is woodstrip cedar with fiberglass outside and in. The wing rigger is also laminated wood.

This is a project for a motivated and somewhat experienced builder. The reason is that a user manual does not exist at this point.  The plans are well detailed and contain all information necessary.

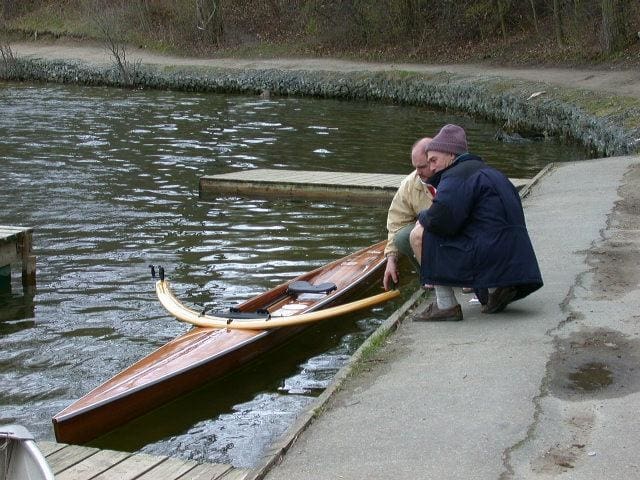

We have heard from several happy builders who have successfully completed the Dragonfly.

Is this the right boat for you?
